Turn table wrapping line UNITECH S.r.l., type UNIWRAP 200 AE, yoc 2007, with top sheet despenser for fully automatic packaging of palletised goods

Technical data turn table wrapping line with top sheet despenser  for fully automatic, watertight packaging of palletised goods

Manufacturer UNITECH S.r.l., Via Buscaglia, 10 - 27029 VIGEVANO, Italia

Typ UNIWRAP 200 AE

Year of construction 2007

Throughput capacity approx. 30 pallets per hour

Connected load 7,5 kW

Weight 3,700 kg

Stretch films, roll diameter 300 mm

Roll height 500 up to 750 mm

Core diameter 76 mm

Film thickness 15 to 35 micron

Roll weight 25 kg

Top cover PE film, roll diameter 250 mm

Core diameter 76 mm

PE film roll width max. 1,700 mm

PE film thickness 60 to 100 micron

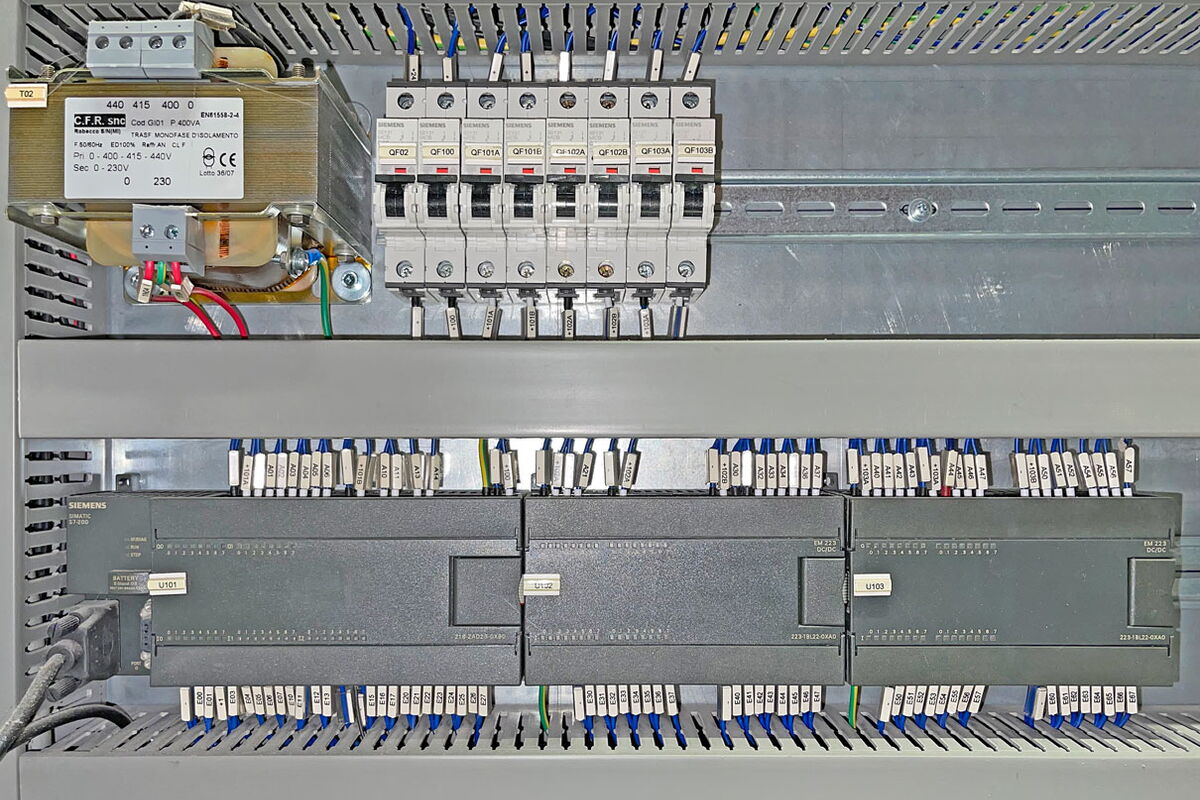

PLC Siemens Simatic S7-200

PLC panel Siemens OP 77A

Installation dimensions Wrappinmg unit 3,400 x 3,100 x 3,900 mm (l x w x h)

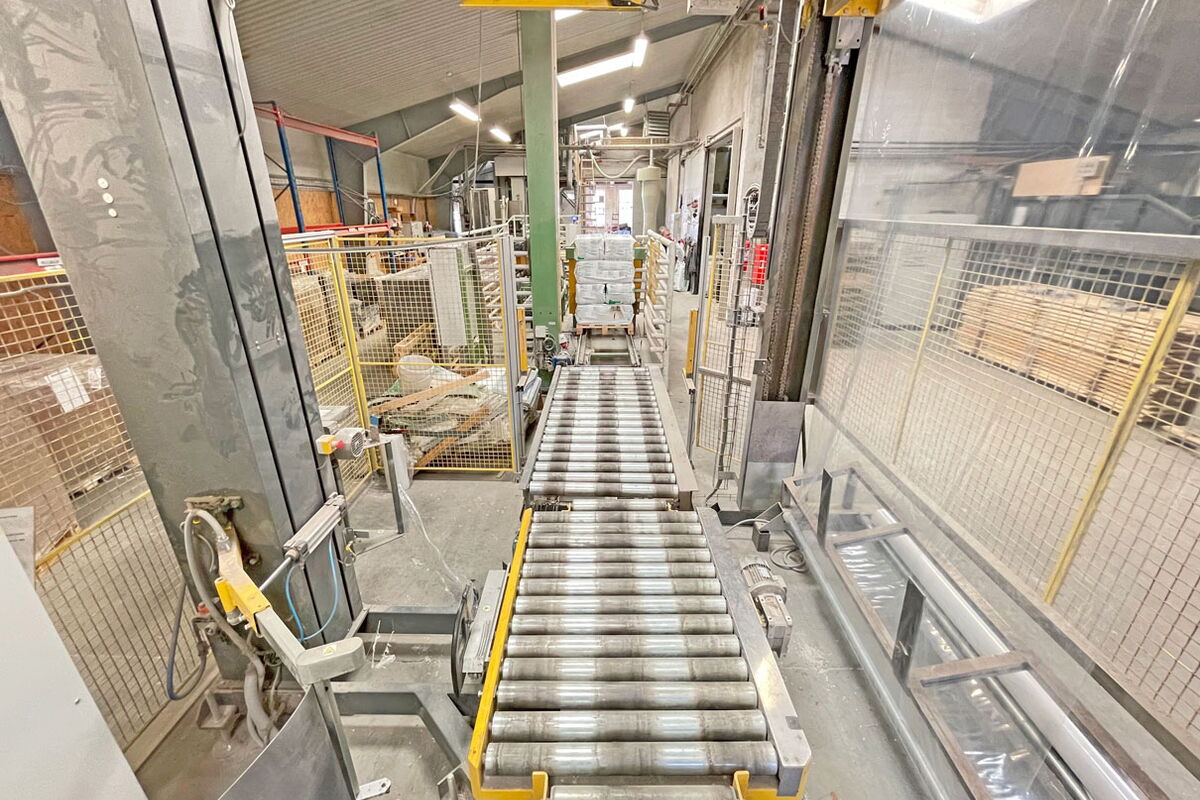

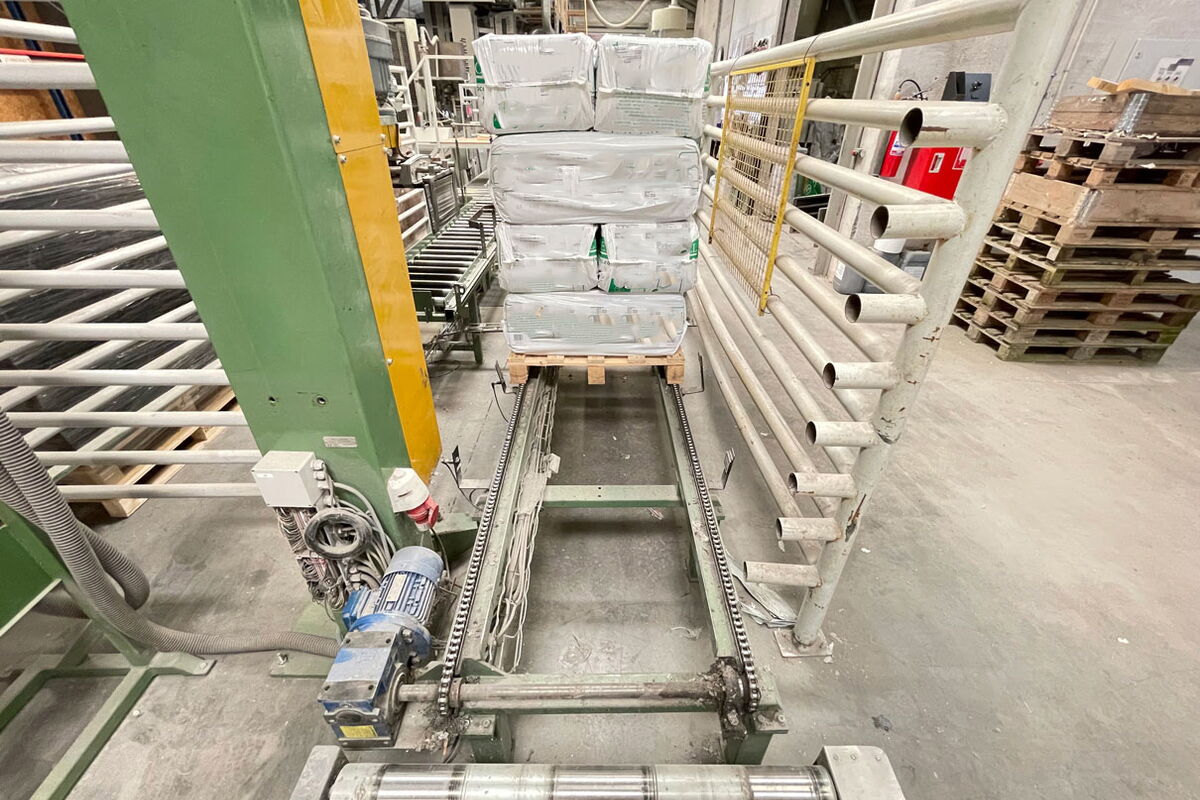

Dimensions roller conveyor 10,000 x 1,150 x 570 mm (l x w x h)

Descreption:

The Uniwrap 200 AE is a robust build stretch wrapping machine made of high quality components delivering reliability in the long term, which minimises maintenance costs. The use of the latest technologies provide total control over the pressure applied by the stretch film over the product, the pre-stretch ratio and the packaging overall holding force.

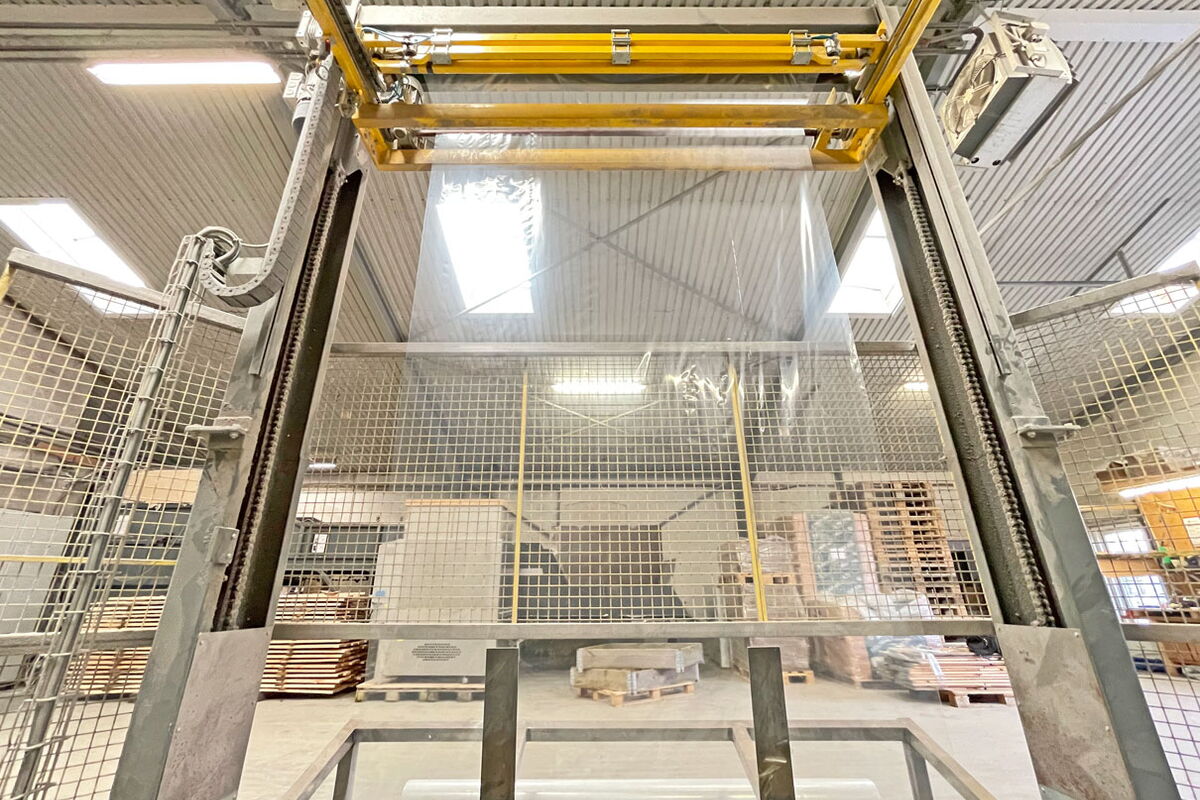

The Uniwrap 200 AE includes a top-sheet applicator, programmable to client's requirements.

Condition:

The entire stretch wrapping line is still assembled, in really good condition, dismantled, stored and available at short notice.

Comments:

The documentation (Manual, CE-declaration, electr./hydr.-drawings), are completely available.  Inspections are possible after agreement.  We will not assume liability for the given technical data and possible errors.
